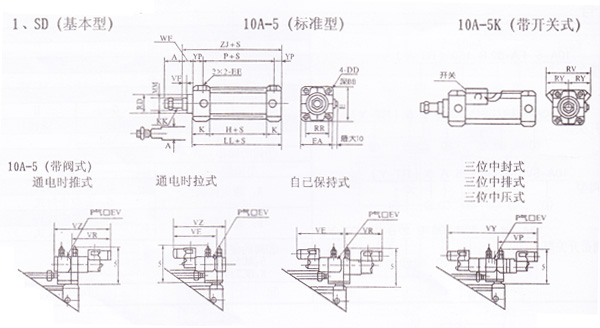

外形及安裝尺寸
尺寸表
|
代號/缸徑
|
A
|
BB
|
D
|
DD
|
E
|
EA
|
EE
|
H
|
K
|
KK
|
EV
|
VZ
|
VR
|
LL
|
|
Φ32
|
22
|
8
|
10
|
M6*1
|
44
|
44
|
ZG1/8"
|
29
|
32
|
M10*1.25
|
ZG1/4"
|
155
|
99
|
93
|
|
Φ40
|
24
|
8
|
13
|
M6*1
|
50
|
50
|
ZG1/4"
|
29
|
32
|
M12*1.25
|
ZG1/4"
|
155
|
99
|
93
|
|
Φ50
|
32
|
8
|
19
|
M6*1
|
62
|
62
|
ZG1/4"
|
29
|
32
|
M16*1.5
|
ZG1/4"
|
155
|
99
|
93
|
|
Φ63
|
32
|
9
|
19
|
M8*1.25
|
76
|
75
|
ZG3/8"
|
32
|
32
|
M16*1.5
|
ZG3/8"
|
165
|
102
|
96
|
|
Φ80
|
40
|
11
|
22
|
M10*1.5
|
94
|
94
|
ZG3/8"
|
32
|
38
|
M20*1.5
|
ZG3/8"
|
165
|
102
|
108
|
|
Φ100
|
40
|
11
|
22
|
M10*1.5
|
114
|
112
|
ZG1/2"
|
32
|
38
|
M20*1.25
|
ZG3/8"
|
165
|
102
|
108
|
|
Φ125
|
54
|
14
|
27
|
M12*1.75
|
138
|
136
|
ZG1/2"
|
38
|
38
|
M27*2
|
ZG1/2"
|
180
|
107
|
114
|
|
Φ160
|
72
|
18
|
36
|
M16
|
174
|
172
|
ZG3/4"
|
39
|
43
|
M10*1.32
|
ZG3/4"
|
170
|
60
|
125
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
代號/缸徑
|
MM
|
P
|
RD
|
RR
|
VF
|
WF
|
YP
|
ZJ
|
VE
|
VT
|
RV
|
RY
|
VY
|
VP
|
|
Φ32
|
Φ12
|
58
|
Φ28
|
33
|
15
|
25
|
17.5
|
118
|
121
|
96
|
74
|
37
|
260
|
120
|
|
Φ40
|
Φ16
|
58
|
Φ32
|
37
|
15
|
25
|
17.5
|
118
|
121
|
96
|
80
|
40
|
260
|
120
|
|
Φ50
|
Φ22
|
58
|
Φ38
|
47
|
15
|
25
|
17.5
|
118
|
121
|
96
|
90
|
45
|
260
|
120
|
|
Φ63
|
Φ22
|
61
|
Φ38
|
56
|
15
|
25
|
17.5
|
121
|
128
|
101
|
102
|
51
|
284
|
129
|
|
Φ80
|
Φ25
|
65
|
Φ47
|
70
|
21
|
35
|
21.5
|
143
|
128
|
101
|
118
|
59
|
284
|
129
|
|
Φ100
|
Φ25
|
65
|
Φ47
|
84
|
21
|
35
|
21.5
|
143
|
128
|
101
|
132
|
66
|
284
|
129
|
|
Φ125
|
Φ32
|
71
|
Φ54
|
104
|
21
|
35
|
21.5
|
149
|
137
|
125
|
154
|
77
|
306
|
138
|
|
Φ160
|
Φ40
|
79
|
Φ62
|
134
|
25
|
42
|
23
|
167
|
110
|
166
|
186
|
93
|
188
|
69
|
|
